We provide comprehensive tube mill welding solutions for pipe manufacturing companies, covering pipe making equipment supply, welding technology optimization and post-processing supporting services, helping clients improve production efficiency and product competitiveness.
Custom Pipe Making Equipment & Design Scheme

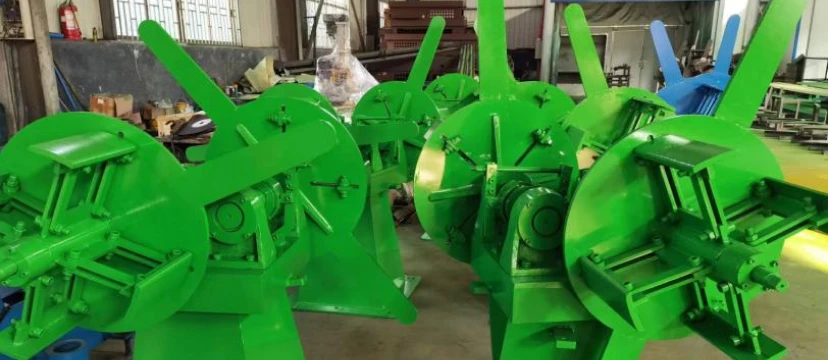

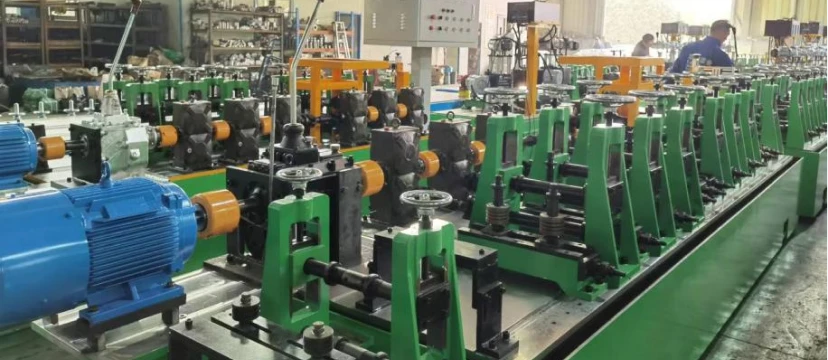

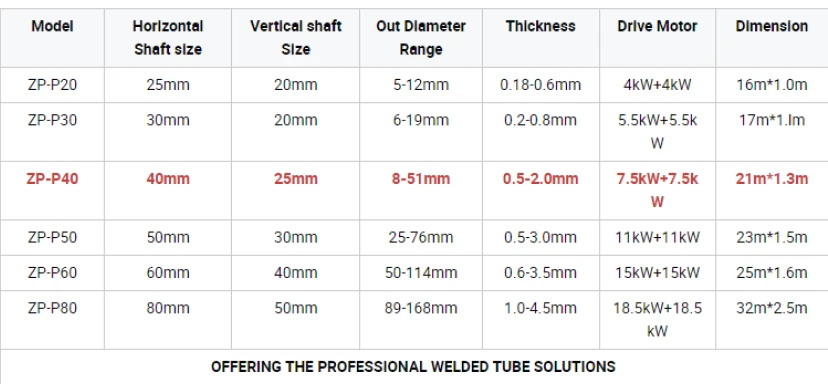

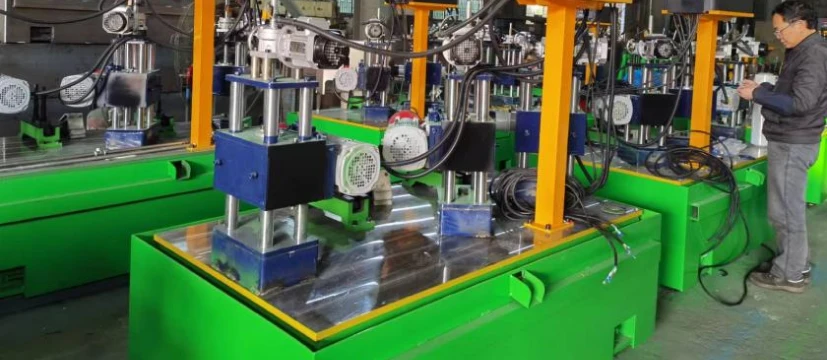

We provide 40&50 model pipe making equipment, and offer professional design schemes according to the client’s production needs, including the design and manufacturing of slotted pipes, L-shaped special-shaped pipes and other special pipes. The equipment has stable performance, high production efficiency, and can be customized and adjusted according to the client’s product specifications and production capacity requirements.
Laser Welding for Pipe Manufacturing Companies
We provide laser welding technology and equipment for pipe manufacturing companies, which has obvious advantages compared with TIG welding. The laser welding speed can reach 20 meters per minute, which is much faster than TIG welding, greatly improving production efficiency. At the same time, laser welding has characteristics of narrow heat-affected zone, firm welding seam, smooth surface and no need for secondary processing, reducing production cost and improving product quality.
Project Overview

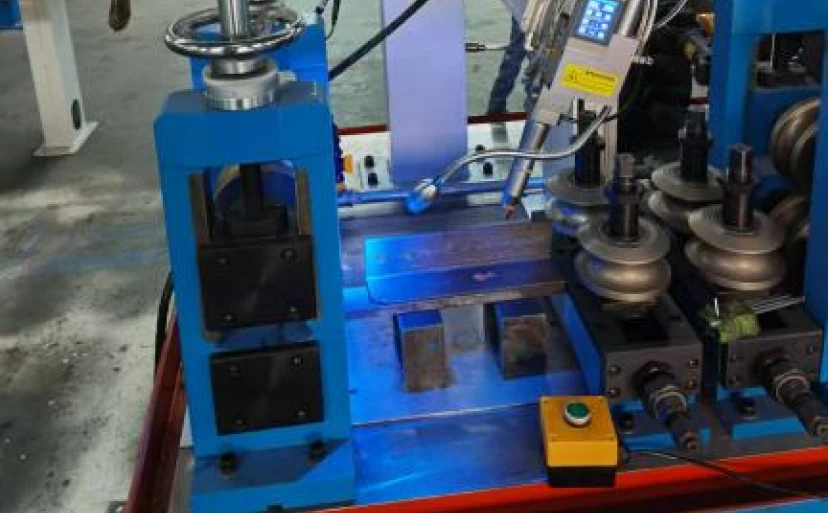

We provided a 3000W fiber laser welding system dedicated to tube mill production. The allinone integrated unit includes laser source, welding head, chiller, control system and dust collector. Supports quick installation and fast production once connected to water, power and gas.
Key Advantages
- Ultrahigh production efficiency: 20 seconds per tube (up to tubes per minute), greatly improving output
- Integrated modular design, easy installation, small footprint
- 100% duty cycle for stable 24hour continuous production
- Builtin water cooling for laser and welding head, long service life
- Adjustable welding head (height, lateral, angle) for high welding stability
- Precise gas control and dedicated dust collector for clean, highquality welds
- Stable power output, suitable for stainless steel, carbon steel and various metal tubes
Main Specifications
- Model: WSD3000
- Laser power: 3000W fiber laser max
- Input: 380VAC±10%, 50/60Hz, 22KW
- Cooling mode: Water cooling
- Gas flow: 0–25L/min
- Dimensions: 1000×600×1200mm
- Weight: 350KG
- Production speed: 20s per tube (3 tubes/min)
Core Components
- 3000W fiber laser MAX
- Fiber laser welding head (Osprey)
- Industrial water chiller (S&A)
- Special dust collector
- Siemens PLC + Kunlun Tongtai HMI
- Custom laser control system
Applications
Stainless steel pipe welding, carbon steel tube production, highspeed tube mill lines, metal pipe manufacturing.
Stainless Steel Pipe Cutting Case & Equipment Supply
We have rich experience in stainless steel pipe cutting, and have successfully solved the production needs of a pipe manufacturing client. The client’s requirements for 41 OD stainless steel pipes are as follows: daily output of 15,000 pieces of 375 mm pipes, 8,000 pieces of 925 mm pipes and 8,000 pieces of 1,675 mm pipes, requiring 24-hour continuous operation. We have customized and provided suitable high-efficiency laser cutting equipment for the client, which realizes stable 24-hour operation, meets the client’s output requirements, and ensures cutting precision and product consistency.
